HPropertyInfo Class Reference

Father class for all property UI contexts. More...

#include <HPropert.h>

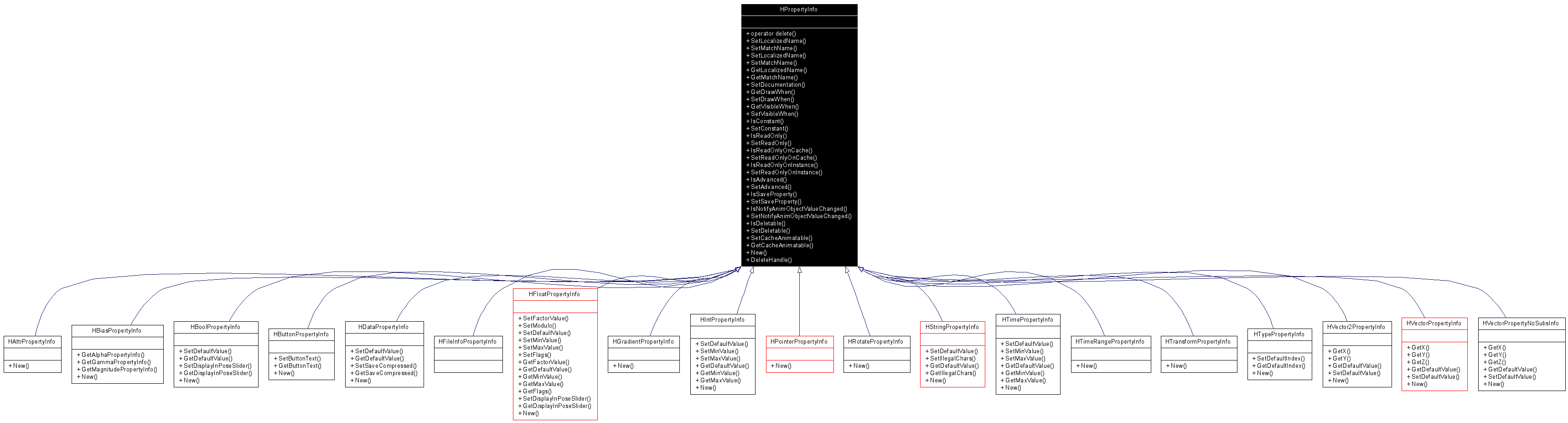

Inheritance diagram for HPropertyInfo:

[legend]List of all members.

Public Types
enum	DrawWhen {   DRAWNEVER, DRAWALWAYS, DRAWIFSHADED, DRAWIFFLARES,   DRAWIFMATERIALS, DRAWIFPARTICLES }
enum	VisibleWhen {   VISIBLENEVER, VISIBLEALWAYS, VISIBLECACHEONLY, VISIBLEINSTANCEONLY,   VISIBLESOMETIMES }
Public Member Functions
void	operator delete (void *ptr)
void	SetLocalizedName (const char *name)
	For backward comp with V9.0o and older.
void	SetMatchName (const char *name)
	For backward comp with V9.0o and older.
void	SetLocalizedName (const String &name)
void	SetMatchName (const String &name)
String	GetLocalizedName ()
String	GetMatchName ()
void	SetDocumentation (const char *doc)
DrawWhen	GetDrawWhen ()
void	SetDrawWhen (DrawWhen dw)
VisibleWhen	GetVisibleWhen ()
void	SetVisibleWhen (VisibleWhen vw)
BOOL	IsConstant ()
void	SetConstant (BOOL state)
BOOL	IsReadOnly ()
void	SetReadOnly (BOOL state)
BOOL	IsReadOnlyOnCache ()
void	SetReadOnlyOnCache (BOOL state)
BOOL	IsReadOnlyOnInstance ()
void	SetReadOnlyOnInstance (BOOL state)
BOOL	IsAdvanced ()
void	SetAdvanced (BOOL state)
BOOL	IsSaveProperty ()
void	SetSaveProperty (BOOL state)
BOOL	IsNotifyAnimObjectValueChanged ()
void	SetNotifyAnimObjectValueChanged (BOOL state)
BOOL	IsDeletable ()
void	SetDeletable (BOOL state)
void	SetCacheAnimatable (BOOL state)
BOOL	GetCacheAnimatable ()
Static Public Member Functions
static HPropertyInfo *	New (const char *localizedname, const char *matchname)
static void	DeleteHandle (HPropertyInfo *handle)

---

Detailed Description

Father class for all property UI contexts.

Classes under HPropertyInfo are used to supply a UI context for corresponding HProperty classes to be set and manipulated by the user in the PWS. Since the UI context is the same for each instance which uses the same property, the HPropertyInfo derived classes should be declared inside the application class. In other words inside the InitInstance of the CWinApp derived class.

Note:

In order for the HPropertyInfo derived classes and their associated HProperty derived classes property to show in the property panel of the PWS, the associated HProperty must be assigned an index through the DLLPlugin::GetPropertyAt.

See also:

HProperty, DLLPlugin::GetPropertyAt

Definition at line 23 of file HPropert.h.

---

Member Enumeration Documentation

enum HPropertyInfo::DrawWhen

Controls when the property will be displayed in the PWS for the user to enter values. From the SDK point of view, a plugin possess a list of properties which are all grouped together inside a property panel. The panel is displayable by clicking on the little expand triangle that is visible on a node of the PWS tree. A plugin property pannel may be accessible from different context. For example, the properties for a turbulence plugin may be accessible from a material node, from a material shortcut on a model or on a group and from a material shortcut on a model shortcut in choreography. For some particular properties, it may be desirable to let the user modify them only when inside a material node for instance. See also: HPropertyInfo::GetDrawWhen, HPropertyInfo::SetDrawWhen Enumerator: DRAWNEVER  The property will never be displayed in the PWS. This can be used for a plugin to store values that might be retrieved from call to call. DRAWALWAYS  The property will always be displayed in the PWS, no matter the context in which the property panel is displayed. DRAWIFSHADED  DRAWIFFLARES  DRAWIFMATERIALS  The property will only be displayed if the property panel is displayed inside a material node. It will not be displayed when the property panel is inside a material shortcut on a model or group or is inside a material shortcut on a model shortcut in choreography. DRAWIFPARTICLES  Definition at line 26 of file HPropert.h.

enum HPropertyInfo::VisibleWhen

Controls how a plugin can switch visibility of a property in the PWS for the user to enter values. This is different than DrawWhen in that VisibleWhen imposes restriction on the actions of HProperty::Show during plugin execution. See also: HPropertyInfo::GetVisibleWhen, HPropertyInfo::SetVisibleWhen Enumerator: VISIBLENEVER  The property will never be visible. Even when HProperty::Show(TRUE) is called. VISIBLEALWAYS  The property will always be visible. Even when HProperty::Show(FALSE) is called. This is the default visibility behavior. VISIBLECACHEONLY  The property will be visible or hidden only when the property pannel is in the original model, material, etc. It will not be visible and cannot be made visible when on an instance of a model, a material, etc. VISIBLEINSTANCEONLY  The property may only be made visible or hidden when the property pannel is on an instance (a shortcut) of an original model, material, etc. It will not be visible and cannot be made visible when on an original model, material, etc. VISIBLESOMETIMES  The property may be visible or hidden as required by the plugin internal status by calling HProperty::Show. Definition at line 27 of file HPropert.h.

---

Member Function Documentation

static void HPropertyInfo::DeleteHandle (  HPropertyInfo *  handle  )  [static]

BOOL HPropertyInfo::GetCacheAnimatable (   )

DrawWhen HPropertyInfo::GetDrawWhen (   )

See also: HPropertyInfo::DrawWhen

String HPropertyInfo::GetLocalizedName (   )

String HPropertyInfo::GetMatchName (   )

VisibleWhen HPropertyInfo::GetVisibleWhen (   )

See also: HPropertyInfo::VisibleWhen

BOOL HPropertyInfo::IsAdvanced (   )

Only shows up if user has Show Advanced Proerties on

BOOL HPropertyInfo::IsConstant (   )

The property does not animate over time

BOOL HPropertyInfo::IsDeletable (   )

BOOL HPropertyInfo::IsNotifyAnimObjectValueChanged (   )

BOOL HPropertyInfo::IsReadOnly (   )

Both cache and instanes are read only

BOOL HPropertyInfo::IsReadOnlyOnCache (   )

Cache is read only meaning that the user will not be able to change the values of the cache's property. The user may be able to change the values of the instance's property though. See also: void HPropertyInfo::SetReadOnly(BOOL state) void HPropertyInfo::SetReadOnlyOnInstance(BOOL state)

BOOL HPropertyInfo::IsReadOnlyOnInstance (   )

Instance is read only meaning that the user will not be able to change the values of the instance's property. The user may be able to change the values of the cache's property though. See also: void HPropertyInfo::SetReadOnly(BOOL state) void HPropertyInfo::SetReadOnlyOnCache(BOOL state)

BOOL HPropertyInfo::IsSaveProperty (   )

HPropertyInfo * HPropertyInfo::New (  const char *  localizedname, const char *  matchname )  [static]

Creates a new HPropertyInfo or any of its derived class UI slot in a property panel in the PWS. Parameters: localizedname  - String of text used to name the property as it will appear on the left column of the property panel in the PWS. matchname  - String used in the saved A:M file as a tag to identify and retrieve the saved property value. See also: HPropertyInfo::SetLocalizedName and HPropertyInfo::SetMatchName Reimplemented in HBoolPropertyInfo, HAttrPropertyInfo, HFloatPropertyInfo, HPercentPropertyInfo, HIntPropertyInfo, HRotatePropertyInfo, HButtonPropertyInfo, HBiasPropertyInfo, HStringPropertyInfo, HFilenamePropertyInfo, HDirPropertyInfo, HTimePropertyInfo, HTimeRangePropertyInfo, HTransformPropertyInfo, HVectorPropertyInfo, HVectorPropertyNoSubsInfo, HVector2PropertyInfo, HColorPropertyInfo, HScalePropertyInfo, HTranslatePropertyInfo, HPointerPropertyInfo, HClipPropertyInfo, HGradientPropertyInfo, and HDataPropertyInfo.

void HPropertyInfo::operator delete (  void *  ptr  )  [inline]

Definition at line 30 of file HPropert.h.

void HPropertyInfo::SetAdvanced (  BOOL  state  )

Will only show up if user has Show Advanced Proerties on

void HPropertyInfo::SetCacheAnimatable (  BOOL  state  )

void HPropertyInfo::SetConstant (  BOOL  state  )

Constant will not animate over time

void HPropertyInfo::SetDeletable (  BOOL  state  )

void HPropertyInfo::SetDocumentation (  const char *  doc  )

void HPropertyInfo::SetDrawWhen (  DrawWhen  dw  )

See also: HPropertyInfo::DrawWhen

void HPropertyInfo::SetLocalizedName (  const String &  name  )

Localized names are the names of properties that appears in the left column of the property panel in the PWS. This name should be retrieved from a string resource to allow easy localization (ie: translation). For example: string.LoadString(IDS_BUMPSTRENGTH); m_bumpinfo = HFloatPropertyInfo::SetLocalizedName( string, String("Bump Strength") );

void HPropertyInfo::SetLocalizedName (  const char *  name  )

For backward comp with V9.0o and older.

void HPropertyInfo::SetMatchName (  const String &  name  )

Match names are labels used to identify the property when the property value is stored in an A:M file (project, model, meterial, etc. files). Any HProperty derived class associated to a corresponding HPropertyInfo derived class will automatically have its properties values stored in the appropriate A:M file. Match names should not be localized. DLLPlugins derived classes also have the possibility to store and retrieve data other than properties with the Save and ParseArg functions. See also: DLLPlugin

void HPropertyInfo::SetMatchName (  const char *  name  )

For backward comp with V9.0o and older.

void HPropertyInfo::SetNotifyAnimObjectValueChanged (  BOOL  state  )

Use this to have HxtOnPtrMessage called for your property. This is a speed hit (it is slow) so only set it if you really want the function to be called.

void HPropertyInfo::SetReadOnly (  BOOL  state  )

Both cache and instanes will be read only meaning the user will not be able to change the values of the property

void HPropertyInfo::SetReadOnlyOnCache (  BOOL  state  )

User will not be able to change the value on the cache, SetReadOnly should be set to FALSE if you want the instances to be able to be editied

void HPropertyInfo::SetReadOnlyOnInstance (  BOOL  state  )

User will not be able to change the value on the instance, SetReadOnly should be set to FALSE if you want the caches to be able to be editied

void HPropertyInfo::SetSaveProperty (  BOOL  state  )

void HPropertyInfo::SetVisibleWhen (  VisibleWhen  vw  )

See also: HPropertyInfo::VisibleWhen

---

The documentation for this class was generated from the following files:

• C:/Program Files/Hash Inc/AM120SDK/Include/SDK/HPropert.h
• C:/Dox/SDK/Comments/HPropert.dox

---
