HFloatPropertyInfo Class Reference

#include <HPropert.h>

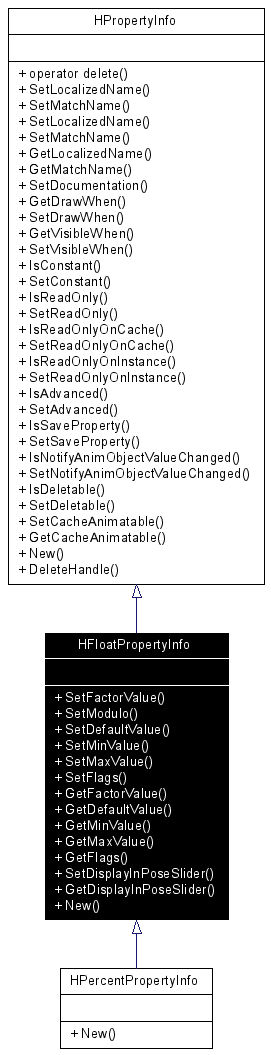

Inheritance diagram for HFloatPropertyInfo:

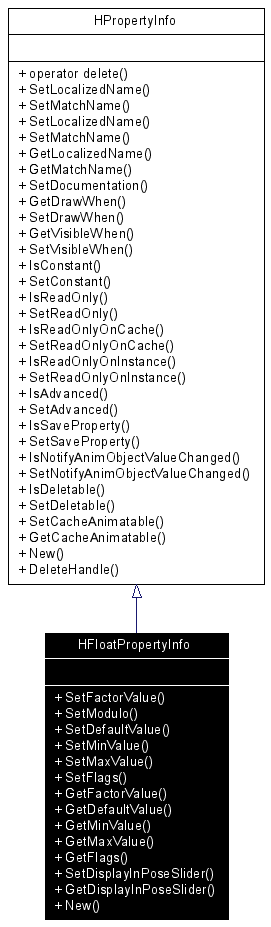

[legend]Collaboration diagram for HFloatPropertyInfo:

[legend]List of all members.

Public Types
enum	{   FF_X = 0x0001, FF_Y = 0x0002, FF_Z = 0x0003, FF_RED = 0x0008,   FF_GREEN = 0x0010, FF_BLUE = 0x0020, FF_UNIT = 0x0040, FF_PERCENTAGE = 0x0080,   FF_ANGLE = 0x0100 }
Public Member Functions
void	SetFactorValue (float val)
void	SetModulo (float modulo)
void	SetDefaultValue (float val)
void	SetMinValue (float val)
void	SetMaxValue (float val)
void	SetFlags (UINT flags)
float	GetFactorValue () const
float	GetDefaultValue () const
float	GetMinValue () const
float	GetMaxValue () const
UINT	GetFlags () const
void	SetDisplayInPoseSlider (BOOL show)
BOOL	GetDisplayInPoseSlider ()
Static Public Member Functions
static HFloatPropertyInfo *	New (const char *localizedname, const char *matchname)

---

Detailed Description

Definition at line 295 of file HPropert.h.

---

Member Enumeration Documentation

anonymous enum

Enumerator: FF_X  FF_Y  FF_Z  FF_RED  FF_GREEN  FF_BLUE  FF_UNIT  FF_PERCENTAGE  FF_ANGLE  Definition at line 298 of file HPropert.h.

---

Member Function Documentation

float HFloatPropertyInfo::GetDefaultValue (   )  const

BOOL HFloatPropertyInfo::GetDisplayInPoseSlider (   )

float HFloatPropertyInfo::GetFactorValue (   )  const

UINT HFloatPropertyInfo::GetFlags (   )  const

float HFloatPropertyInfo::GetMaxValue (   )  const

float HFloatPropertyInfo::GetMinValue (   )  const

static HFloatPropertyInfo* HFloatPropertyInfo::New (  const char *  localizedname, const char *  matchname )  [static]

Creates a new HPropertyInfo or any of its derived class UI slot in a property panel in the PWS. Parameters: localizedname  - String of text used to name the property as it will appear on the left column of the property panel in the PWS. matchname  - String used in the saved A:M file as a tag to identify and retrieve the saved property value. See also: HPropertyInfo::SetLocalizedName and HPropertyInfo::SetMatchName Reimplemented from HPropertyInfo. Reimplemented in HPercentPropertyInfo.

void HFloatPropertyInfo::SetDefaultValue (  float  val  )

void HFloatPropertyInfo::SetDisplayInPoseSlider (  BOOL  show  )

void HFloatPropertyInfo::SetFactorValue (  float  val  )

Set Factor befor calling SetDefault, SetMin or SetMax

void HFloatPropertyInfo::SetFlags (  UINT  flags  )

void HFloatPropertyInfo::SetMaxValue (  float  val  )

void HFloatPropertyInfo::SetMinValue (  float  val  )

void HFloatPropertyInfo::SetModulo (  float  modulo  )

---

The documentation for this class was generated from the following files:

• C:/Program Files/Hash Inc/AM120SDK/Include/SDK/HPropert.h
• C:/Dox/SDK/Comments/Property.dox

---
