HGradientPropertyInfo Class Reference

Holds information about a gradient property. More...

#include <HPropert.h>

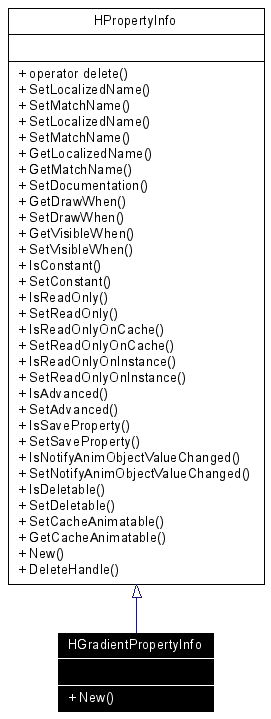

Inheritance diagram for HGradientPropertyInfo:

[legend]Collaboration diagram for HGradientPropertyInfo:

[legend]List of all members.

Static Public Member Functions
static HGradientPropertyInfo *	New (const char *localizedname, const char *matchname)

---

Detailed Description

Holds information about a gradient property.

Note:

The gradient file (.gra) will always have a [GRADIENT] header at the top, and has the following format for each key:

GradientKey = type position r g b percent

Parameters:

	type	is either 0 or 1, which means a Color key or a Percentage key respectively.
	Position	is a percent along the gradient from 0.0 to 1.0.
	RGB	are the 0.0 to 1.0 color values when key is a color
	Percent	is the percentage when key is a percentage

Definition at line 1052 of file HPropert.h.

---

Member Function Documentation

static HGradientPropertyInfo* HGradientPropertyInfo::New (  const char *  localizedname, const char *  matchname )  [static]

Creates a new HPropertyInfo or any of its derived class UI slot in a property panel in the PWS. Parameters: localizedname  - String of text used to name the property as it will appear on the left column of the property panel in the PWS. matchname  - String used in the saved A:M file as a tag to identify and retrieve the saved property value. See also: HPropertyInfo::SetLocalizedName and HPropertyInfo::SetMatchName Reimplemented from HPropertyInfo.

---

The documentation for this class was generated from the following file:

• C:/Program Files/Hash Inc/AM120SDK/Include/SDK/HPropert.h

---
