ImageIOInfo Class Reference

#include <ImageIO.h>

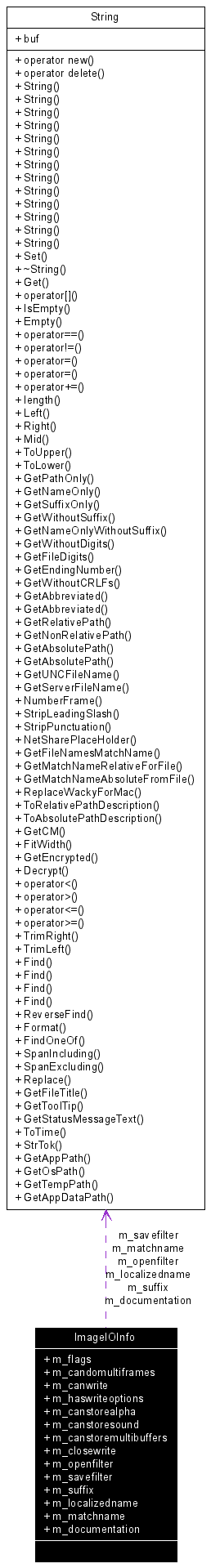

Collaboration diagram for ImageIOInfo:

[legend]List of all members.

Public Attributes
String	m_openfilter
String	m_savefilter
String	m_suffix
String	m_localizedname
String	m_matchname
String	m_documentation
ULONG	m_flags
BOOL	m_candomultiframes: 1
BOOL	m_canwrite: 1
BOOL	m_haswriteoptions: 1
BOOL	m_canstorealpha: 1
BOOL	m_canstoresound: 1
BOOL	m_canstoremultibuffers: 1
BOOL	m_closewrite: 1

---

Detailed Description

ImageIOInfo is used to pass plugin functionalities and capabilities to Animation:Master.

Definition at line 35 of file ImageIO.h.

---

Member Data Documentation

BOOL ImageIOInfo::m_candomultiframes

Indicates if the plugin can process (read-write) multiple frames in one single file. QuickTime and AVI can obviously do that. Gif can too. But Targa can't. Definition at line 40 of file ImageIO.h.

BOOL ImageIOInfo::m_canstorealpha

Indicates if the plugin can store alpha channels with the image data. Definition at line 43 of file ImageIO.h.

BOOL ImageIOInfo::m_canstoremultibuffers

Indicates if the plugin can store multiple buffers. OpenEXR and Jpeg2000 can do that. Definition at line 45 of file ImageIO.h.

BOOL ImageIOInfo::m_canstoresound

Indicates if the plugin can store sound data. Either in the same file, with image data or on separate file. Definition at line 44 of file ImageIO.h.

BOOL ImageIOInfo::m_canwrite

Indicates if the plugin can write to file. All plugins must have read from file capability but may not write to file. Definition at line 41 of file ImageIO.h.

BOOL ImageIOInfo::m_closewrite

Indicates if the plugin needs to close animation file after saving frames. Definition at line 46 of file ImageIO.h.

String ImageIOInfo::m_documentation

Contains a HTML string describing the plugin and its usage. Definition at line 54 of file ImageIO.h.

ULONG ImageIOInfo::m_flags

Definition at line 38 of file ImageIO.h.

BOOL ImageIOInfo::m_haswriteoptions

Indicates if the plugin provides a callable Save Options dialog box. Most common Save Options dialogs are compression settings. Other common Save Option woud be bit depth. Definition at line 42 of file ImageIO.h.

String ImageIOInfo::m_localizedname

Contains the name of the supported file type as displayed in the Render Option drop down list. Definition at line 52 of file ImageIO.h.

String ImageIOInfo::m_matchname

Contains a unique name used to identify the plugin. This name is stored in the project files and must be unique among plugins and may not contain spaces Definition at line 53 of file ImageIO.h.

String ImageIOInfo::m_openfilter

Contains OpenFile dialog file filter. The format is "|Display string|filter string|Macintosh filetype||" Note: since Mac OSX 10.4, the Macintosh filetype is no longer used and my be filled with any 4 characters if the plugin is to be used with A:M v13 and later. Definition at line 49 of file ImageIO.h.

String ImageIOInfo::m_savefilter

Contains Save dialog file filter. The format is "|Display string|filter string|Macintosh filetype||" Note: since Mac OSX 10.4, the Macintosh filetype is no longer used and my be filled with any 4 characters if the plugin is to be used with A:M v13 and later. Definition at line 50 of file ImageIO.h.

String ImageIOInfo::m_suffix

Contains the prefered or most common file extension. Only one extension. Do not include the dot. Definition at line 51 of file ImageIO.h.

---

The documentation for this class was generated from the following files:

• C:/Program Files/Hash Inc/AM120SDK/Include/ImageIO.h
• C:/Dox/SDK/Comments/ImageIO.dox

---
