HHashObject Class Reference

Father class for all hierarchical collections of Hash objects. More...

#include <HHashObj.h>

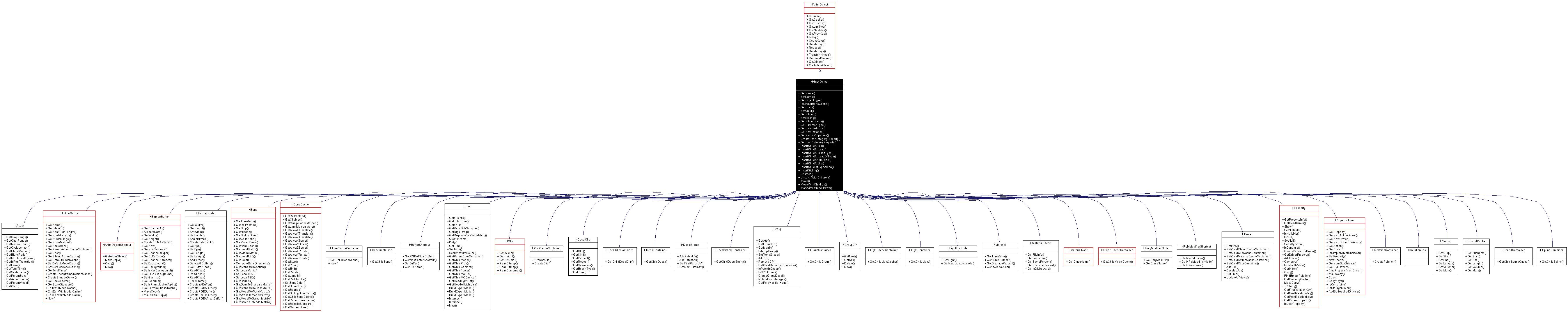

Inheritance diagram for HHashObject:

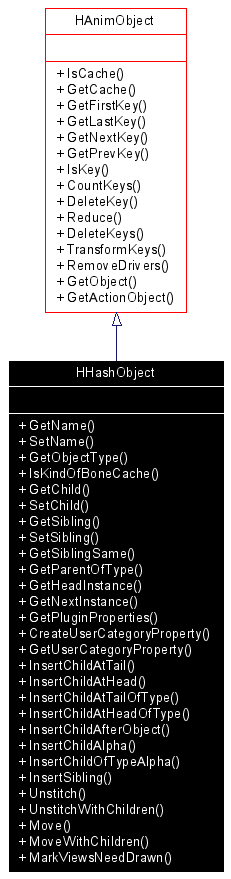

[legend]Collaboration diagram for HHashObject:

[legend]List of all members.

Public Member Functions
char *	GetName ()
void	SetName (const char *name)
ObjectType	GetObjectType ()
BOOL	IsKindOfBoneCache ()
HHashObject *	GetChild ()
void	SetChild (HHashObject *child)
HHashObject *	GetSibling ()
void	SetSibling (HHashObject *sibling)
HHashObject *	GetSiblingSame ()
HHashObject *	GetParentOfType (ObjectType ot)
HHashObject *	GetHeadInstance ()
	Retrieves the first work-object (instance) of an HHashObject.
HHashObject *	GetNextInstance (HHashObject *instance)
	Retrieves the next HObject.
HCategoryProperty *	GetPluginProperties ()
HUserCategoryProperty *	CreateUserCategoryProperty ()
HUserCategoryProperty *	GetUserCategoryProperty ()
void	InsertChildAtTail (HHashObject *child, BOOL modify=TRUE)
void	InsertChildAtHead (HHashObject *child)
void	InsertChildAtTailOfType (HHashObject *child)
void	InsertChildAtHeadOfType (HHashObject *child)
void	InsertChildAfterObject (HHashObject *child, HHashObject *after)
void	InsertChildAlpha (HHashObject *child, BOOL modify=TRUE)
void	InsertChildOfTypeAlpha (HHashObject *child)
void	InsertSibling (HHashObject *child)
void	Unstitch ()
void	UnstitchWithChildren (BOOL markparentmodified=TRUE)
void	Move (HHashObject *parent, HHashObject *oldersibling, BOOL select=TRUE, BOOL markparentmodified=TRUE)
void	MoveWithChildren (HHashObject *parent, HHashObject *oldersibling, BOOL select=TRUE, BOOL markparentmodified=TRUE)
void	MarkViewsNeedDrawn ()

---

Detailed Description

Father class for all hierarchical collections of Hash objects.

The HHashObject adds to the HTreeObjects the functions necessary for building, retrieving, modifying the child tree and the immediate neighbor nodes in the tree.

Definition at line 264 of file HHashObj.h.

---

Member Function Documentation

HUserCategoryProperty* HHashObject::CreateUserCategoryProperty (   )

HHashObject * HHashObject::GetChild (   )

Retrieves the First child HHashObject in the childs list independent of its type. To test for its type use HHashObject::GetSibling(). Skips user containers, and doesn't include classes not derived off HashObject (CPs) Note: Using GetChild(), GetSibling(), or GetParent() will ensure that the iteration proceeds through the list in the same order as they appear in the PWS folder. Here is a code snipet that will iterate through objects of type HModels in a HChor object. for (HHashObject *obj = chor->GetChild(); obj; obj=obj->GetSibling()) { if (obj->GetObjectType() == HOT_MODEL) ... } See also: see HChor::GetChildModel() for an easier and more efficient way to accomplish the same iteration.

HHashObject * HHashObject::GetHeadInstance (   )

Retrieves the first work-object (instance) of an HHashObject. Each HObjectCache have a list of all work-object instanciated from itself anywhere in a project. For example if you have a HModelCache under the Objects folder, the GetHeadInstance would return the first HModel (an work-objectinstance of a HModelCache) from an internal list. HModels are found in choreographies or if you are editing a HModelCache in a view. If you drop a HModelCache into a choreography, an HModel is created, and it is added to the internal list of checked out instances (GetHeadInstance()).

char* HHashObject::GetName (   )

Reimplemented in HActionCache.

HHashObject * HHashObject::GetNextInstance (  HHashObject *  instance  )

Retrieves the next HObject. Each HObjectCache have a list of all instanciation of itself anywhere in a project. This member function retrieves the next instance of the object. This instance may reside anywhere in the project, choreographies, open Model or Actions views as referenced by "Shortcut to ...". Parameters: instance  - Pointer to the HHashObject from which the next instance is to be retrieved.

ObjectType HHashObject::GetObjectType (   )

Returns the object type Note: The HTreeObject::GetObjectType() should be used instead of this one. This one is an old remnent of the 8.5 SDK and have been left there so not to invalidate old plugins. See also: ObjectType for the complete list of ObjectType tags and their values. HTreeObject::GetObjectType() Reimplemented from HTreeObject. Reimplemented in HShading.

HHashObject * HHashObject::GetParentOfType (  ObjectType  ot  )

Skips user containers, and doesn't include classes not derived off HashObject (CPs)

HCategoryProperty* HHashObject::GetPluginProperties (   )

HHashObject * HHashObject::GetSibling (   )

Retrieves the Next child HHashObject independent of its type in the list starting where the current HHashObject is in the list. To test for its type use HHashObject::GetSibling(). Skips user containers, and doesn't include classes not derived off HashObject (CPs) Note: See HHashObject::GetChild() for an example that iterates through objects in a list.

HHashObject * HHashObject::GetSiblingSame (   )

Retrieves the Next child HHashObject of the same type as the current HHashObject in the list starting where the current HHashObject is in the list. Skips user containers, and doesn't include classes not derived off HashObject (CPs)

HUserCategoryProperty* HHashObject::GetUserCategoryProperty (   )

void HHashObject::InsertChildAfterObject (  HHashObject *  child, HHashObject *  after )

void HHashObject::InsertChildAlpha (  HHashObject *  child, BOOL  modify = TRUE )

void HHashObject::InsertChildAtHead (  HHashObject *  child  )

void HHashObject::InsertChildAtHeadOfType (  HHashObject *  child  )

void HHashObject::InsertChildAtTail (  HHashObject *  child, BOOL  modify = TRUE )

void HHashObject::InsertChildAtTailOfType (  HHashObject *  child  )

void HHashObject::InsertChildOfTypeAlpha (  HHashObject *  child  )

void HHashObject::InsertSibling (  HHashObject *  child  )

BOOL HHashObject::IsKindOfBoneCache (   )

void HHashObject::MarkViewsNeedDrawn (   )

void HHashObject::Move (  HHashObject *  parent, HHashObject *  oldersibling, BOOL  select = TRUE, BOOL  markparentmodified = TRUE )

void HHashObject::MoveWithChildren (  HHashObject *  parent, HHashObject *  oldersibling, BOOL  select = TRUE, BOOL  markparentmodified = TRUE )

void HHashObject::SetChild (  HHashObject *  child  )

void HHashObject::SetName (  const char *  name  )

void HHashObject::SetSibling (  HHashObject *  sibling  )

void HHashObject::Unstitch (   )

void HHashObject::UnstitchWithChildren (  BOOL  markparentmodified = TRUE  )

---

The documentation for this class was generated from the following files:

• C:/Program Files/Hash Inc/AM120SDK/Include/SDK/HHashObj.h
• C:/Dox/SDK/Comments/PWS.dox

---
