A HCP can link to the previous and next CP in a HSpline. HCPs can also be attached to other HCPs to form a stack. To the user, attached HCPs appear to be only one HCP, where more than one spline intersect. When a HCP is attached to another HCP, the position of the control point is stored in the first HCP in the stack, which is called the head.

Bias and Magnitude control the shape of the spline as it goes through the control point. Bias is made up of Gamma and Alpha.

Gamma is the angle of the spline as it goes in and out of the control point in the plane defined by the current control point and the previous and next control points. The range of Gamma can be from -180 to 180 degrees.

Alpha is similar to Gamma, except that it control the angle of the spline along the plane perpendicular to the patch's surface. The default values of Gamma and Alpha are normally zero.

Magnitude controls the amount of curve of the spline as it passes through the control point. The default value is 1.0, and a value of 0.0 creates a sharp point.

Basically the tangents are adjusted every time the vertices move. The default tangents can be calculated by subtracting the previous vertex from the next vertex and normalizing it.

p1 = previous vertex
p2 = this vertex
p3 = next vertex.

a = (p2-p1).Norm();
b = (p3-p1).Norm();
c = (p3-p1).Norm();
default input magnitude for p2 = a/((a+b)/c)
default output magnitude for p2 = b/((a+b)/c)

Magnitude can simply be muliplied by the default magnitude. Ex. If the user enters 150 for magnitude, simply multiply the default mag by 1.5.

To solve the gamma for p2, you define a plane created by p1, p2, p3. Gamma is entered in degrees. A close representation would be rotating the tangent in degrees starting at its calculated default tangent location along the plane decribed above. But for efficiency purpose, instead of rotating the tangent in degrees, we linearly interpolate the gamma along a line starting at the tangent to a location 90 degrees from the tangent. Then the new tangent would intersect this point on that line. So 0, 45, and 90 degrees will give you the exact same result as rotating the angle, but the in betweens will differ slighly. You might not care to do the linear part because rotating is pretty close.

Alpha is similar to gamma, but you must look at neighboring splines. You can only adjust alpha if there is a junction of two splines through a vertex. Cross the two vertices to net the normal that the alpha value will rotate around.

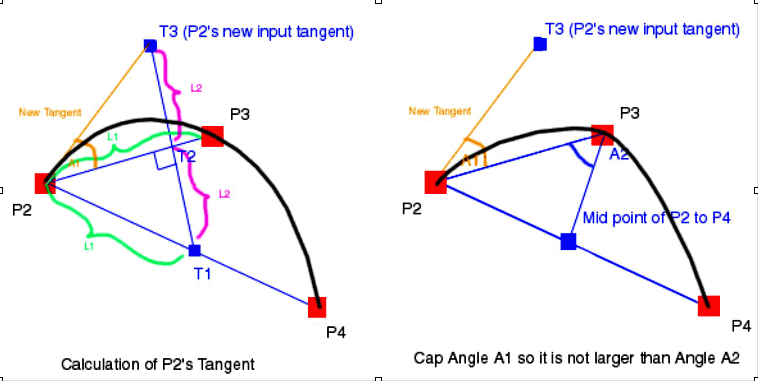

Here is how to calculate the input tangent into P2, if P2 is the end point on a spline P2, P3, P4, P5, etc.

Functions
float Vector.Norm() // length of vector;
void Vector.Normalized() // normalized vector
// Vector * Vector represents dot product

T3 (P2’s new input tangent)
// L1: Length from P2 to P3.
L1 = (P3-P2).Norm()
// T1: L1’s length along line segment P2 P4.
T1 = (P4-P2).Normalized() * L1
// T2: T1 Projected onto line segment P2 P3.
T2 = ((T1-P2) * (P3-P2).Normalized()) * (P3-P2).Normalized()
// T3: The mirror of T1 across P2 P3.
T3 = T2 + (T2-T1)
Cos A1 = (P3-P2) .Normalized() * (T3-P2).Normalized()
Cos A2 = ((P2+P4)/2 – P3).Normalized() * (P2-P3).Normalized()

If A1 > A2 (cos A1 < cos A2) // We must cap A1’s angle
   P2+((P3-(P2+P4)/2).Normalized() *L1)

This is the new location of T3. We found by capping the angle of A1, to be no larger than A2, it significantly helped the appearance of the spline. One of our goals of calculating the new tangent (T3) was to preserve its distance from P2, which is L1. If angle A1 is greater than angle A2, then an easy way to adjust T3 so that A1 is the same as A2 is to use the normalized vector A2 to the midpoint of P2P4 and multiply by it the length L1 and add it to P2. This is guarateed to make angle A1 the same as A2 because they are opposite angles of an intersection between two parallel lines.

Peak points are treated differently. Their tangents actually lie on the line between its vertex and the adjoining vertex. End points are a little trickier. They actually take into consideration the previous two vertices.

Member Function Documentation

BOOL HCP::AddStackToGroup

(

HGroupCP **

)

This function is the same as AddToGroup() except that instead of just adding this HCP, it will add this HCP and all attached HCPs to the group. This is useful when adding control points that were created with the Extrude() function. This function always returns TRUE.

Parameters:

- (uplink) the address of a pointer to the first HGroupCP in the group you wish to add this control point to.

BOOL HCP::AddToGroup

(

HGroupCP **

)

This function first searches the group to make sure this control point isn't already in this group. If it finds that it is, the function returns FALSE. Otherwise, a new HGroupCP is allocated and it is set to point to this HCP and the function returns TRUE. The new HGroupCP is returned in the uplink parameter.

Parameters:

- (uplink) the address of a pointer to the first HGroupCP in the group you wish to add this control point to.

void HCP::ComputeInBias	(	const Vector &	goalit,
		float &	alpha,
		float &	gamma,
		float &	magnitude
	)

Note:: Don't seem to work on endpoints of non-looped splines.

void HCP::ComputeOutBias	(	const Vector &	goalot,
		float &	alpha,
		float &	gamma,
		float &	magnitude
	)

Note:: Don't seem to work on endpoints of non-looped splines.

HCPInstance * HCP::CreateCPInstance

(

)

Once you are editing the action with a certain model you need to make a call to CreateCPInstance. CreateCPInstance creates a HCPInstance object for the HCP and returns it. if a HCPInstance object already exists for this HCP, the existing object is returned.

HCPInstance * HCP::GetCPInstance

(

)

If a HCPInstance object already exists for this HCP, the existing object is returned. Otherwise, NULL is returned.

See also:: HCP::CreateCPInstance

HCP * HCP::GetHead

(

)

This function returns a pointer to the first HCP in a stack of attached HCPs. When multiple HCPs are attached, the position is stored in the head HCP. So it is important to use GetPosition() and SetPosition() with the HCP that GetHead() returns when dealing with control points that are attached.

float HCP::GetInAlpha

(

)

This function returns the Alpha angle value of the spline as it goes into the HCP from the next HCP.

float HCP::GetInGamma

(

)

This function returns the Gamma angle value of the spline as it goes into the HCP from the next HCP.

float HCP::GetInMagnitude

(

)

This function returns the Magnitude of the spline's curvature as it goes into the HCP from the next HCP.

Vector HCP::GetInTangent

(

)

Returns a vector that contains the direction of the tangent of the spline going into this control point. The tangent direction includes muscle, and pose motion, but no skeletal

Note:: HCP::GetInTangent() and HCP::GetOutTangent() may return differing magnitudes, but their direction is the same. For the purposes of computing normals, you must therefore flip the direction of either the In or Out tangents.

Vector HCP::GetModelInTangent

(

)

Returns a vector that contains the direction of the tangent of the spline going into this control point. The tangent direction is with no motion, from raw model data.

Vector HCP::GetModelOutTangent

(

)

Returns a vector that contains the direction of the tangent of the spline going out of this control point. The tangent direction is with no motion, from raw model data.

const Vector * HCP::GetModelPosition

(

)

Returns a pointer to a vector which stores the location of the control point. This is the position of the CP with no motion, raw model data.

HCP * HCP::GetNext

(

)

Returns the next HCP in the spline. Returns NULL when it reaches the end of the spline even if the spline is looped.

HCP * HCP::GetNextAttached

(

)

This function returns a pointer to the next attached HCP on a stack of attached HCPs. It will return FALSE when it reaches the end. Use this function to walk through attached HCPs.

This is to retrieve the multiple HCP that may be attached together where multiple HSplines meet. So this will in effect jump from Spline to SPline.

float HCP::GetOutAlpha

(

)

This function returns the Alpha angle value of the spline as it goes out of the HCP to the previous HCP.

float HCP::GetOutGamma

(

)

This function returns the Gamma angle value of the spline as it goes out of the HCP to the previous HCP.

float HCP::GetOutMagnitude

(

)

This function returns the Magnitude of the spline's curvature as it goes out of the HCP to the previous HCP.

Vector HCP::GetOutTangent

(

)

Returns a vector that contains the direction of the tangent of the spline going out of this control point.

Note:: HCP::GetInTangent() and HCP::GetOutTangent() may return differing magnitudes, but their direction is the same. For the purposes of computing normals, you must therefore flip the direction of either the In or Out tangents.

const Vector * HCP::GetPosition

(

)

Returns a pointer to a vector which stores the location of the control point. The position of the CP, includes muscle, and pose motion, but no skeletal

If this control point is attached to another, you may want to use GetHead() to make sure it is the head's position.

HCP * HCP::GetPrev

(

)

Returns the previous HCP in the spline. Returns NULL when it reaches the beginning of the spline even if the spline is looped.

HCP * HCP::GetPrevAttached

(

)

This function returns a pointer to the previous attached HCP on a stack of attached HCPs. It will return FALSE when it reaches the beginning. Use this function to walk backwards through attached HCPs.

This is to retrieve the multiple HCP that may be attached together where multiple HSplines meet. So this will in effect jump from Spline to SPline.

Vector HCP::GetScreenInTangent

(

)

Returns a vector that contains the direction of the tangent of the spline going into this control point. This is the tangent direction completely transformed in world style coordinated, but facing the camera.

Vector HCP::GetScreenOutTangent

(

)

Returns a vector that contains the direction of the tangent of the spline going out of this control point. This is the tangent direction completely transformed in world style coordinated, but facing the camera.

const Vector * HCP::GetScreenPosition

(

)

Returns a pointer to a vector which stores the location of the control point. This is the position of the CP completely transformed in world style coordinated, but facing the camera and relative to camera position.

HSpline * HCP::GetSpline

(

)

Returns the spline of which the conrol point is a part.

Vector HCP::GetWorldInTangent

(

)

Returns a vector that contains the direction of the tangent of the spline going into this control point. This is the tangent direction completely transformed.

Vector HCP::GetWorldOutTangent

(

)

Returns a vector that contains the direction of the tangent of the spline going out of this control point. This is the tangent direction completely transformed.

const Vector * HCP::GetWorldPosition

(

)

Returns a pointer to a vector which stores the location of the control point. This is the position of the CP completely transformed.

BOOL HCP::IsHookBase

(

)

Returns TRUE if the HCP is the start of a spline segment to which hooks are attached.

BOOL HCP::IsLoop

(

)

Returns the flag setting indicating whether this control point loops back to the first control point in the spline. If IsLoop() is TRUE, this HCP's GetNext() will return the first HCP in the spline. If you are walking a spline with GetNext(), check the IsLoop flag with this function to prevent an infinite loop.

BOOL HCP::IsPeaked

(

)

Returns TRUE if the spline passing through the HCP is set to be a hard peak with no curve.

BOOL HCP::IsSmooth

(

)

Returns TRUE if the spline passing through the HCP is set to be a smooth curve.

void HCP::SetInAlpha

(

float

fValue

)

This function sets the alpha angle going into the HCP.

Parameters:

fValue

- a float value from -180 to 180 degrees.

void HCP::SetInGamma

(

float

fValue

)

This function sets the gamma angle going into the HCP.

Parameters:

fValue

- a float value from -180 to 180 degrees.

void HCP::SetInMagnitude

(

float

fValue

)

This function sets the curvature magnitude of the spline as it goes into the HCP.

Parameters:

fValue

- a float value. 0.0 for a hard peak, and 1.0 for the default curve.

void HCP::SetOutAlpha

(

float

fValue

)

This function sets the alpha angle going out of the HCP.

Parameters:

fValue

- a float value from -180 to 180 degrees.

void HCP::SetOutGamma

(

float

fValue

)

This function sets the gamma angle going out of the HCP.

Parameters:

fValue

- a float value from -180 to 180 degrees.

void HCP::SetOutMagnitude

(

float

fValue

)

This function sets the curvature magnitude of the spline as it goes out of the HCP.

Parameters:

fValue

- a float value. 0.0 for a hard peak, and 1.0 for the default curve.

void HCP::SetPeaked

(

)

Sets the spline that passes through the HCP to have a hard peak with no curve.

void HCP::SetPosition

(

Vector *

)

Use this function to set the location of the control point. If this is an attached control point, you may want to use GetHead() to make sure you are setting the head's position.

Parameters:

- Pass a vector with the appropriate X, Y, and Z values.

void HCP::SetSmooth

(

)

Sets the spline that passes through the HCP to have a smooth curve.


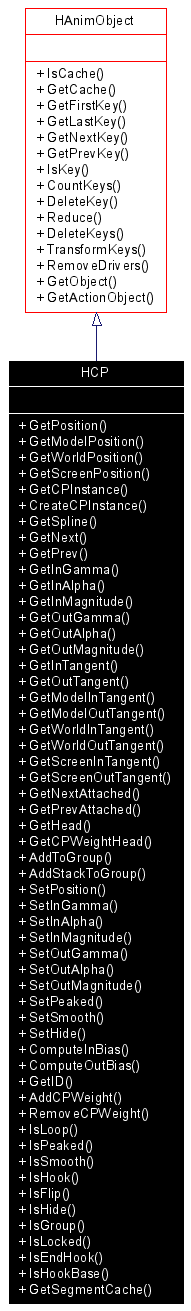

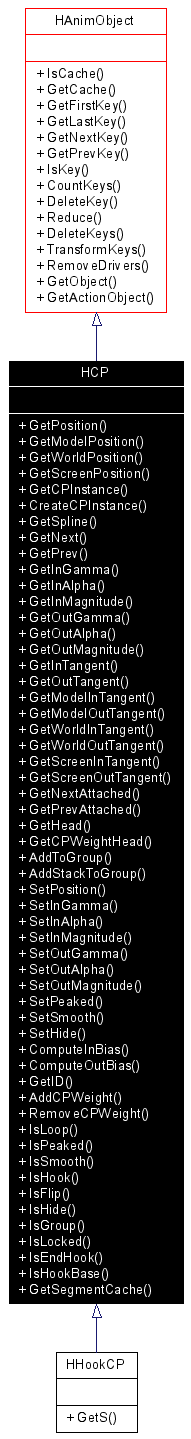

Public Member Functions
const Vector *	GetPosition ()
const Vector *	GetModelPosition ()
const Vector *	GetWorldPosition ()
const Vector *	GetScreenPosition ()
HCPInstance *	GetCPInstance ()
HCPInstance *	CreateCPInstance ()
HSpline *	GetSpline ()
HCP *	GetNext ()
HCP *	GetPrev ()
float	GetInGamma ()
float	GetInAlpha ()
float	GetInMagnitude ()
float	GetOutGamma ()
float	GetOutAlpha ()
float	GetOutMagnitude ()
Vector	GetInTangent ()
Vector	GetOutTangent ()
Vector	GetModelInTangent ()
Vector	GetModelOutTangent ()
Vector	GetWorldInTangent ()
Vector	GetWorldOutTangent ()
Vector	GetScreenInTangent ()
Vector	GetScreenOutTangent ()
HCP *	GetNextAttached ()
HCP *	GetPrevAttached ()
HCP *	GetHead ()
HCPWeight *	GetCPWeightHead ()
BOOL	AddToGroup (HGroupCP **gh)
BOOL	AddStackToGroup (HGroupCP **gh)
void	SetPosition (Vector *p)
void	SetInGamma (float fValue)
void	SetInAlpha (float fValue)
void	SetInMagnitude (float fValue)
void	SetOutGamma (float fValue)
void	SetOutAlpha (float fValue)
void	SetOutMagnitude (float fValue)
void	SetPeaked ()
void	SetSmooth ()
void	SetHide (BOOL bHide)
void	ComputeInBias (const Vector &goalit, float &alpha, float &gamma, float &magnitude)
void	ComputeOutBias (const Vector &goalot, float &alpha, float &gamma, float &magnitude)
UINT	GetID ()
HCPWeight *	AddCPWeight ()
void	RemoveCPWeight (HCPWeight *hcpweight)
BOOL	IsLoop ()
BOOL	IsPeaked ()
BOOL	IsSmooth ()
BOOL	IsHook ()
BOOL	IsFlip ()
BOOL	IsHide ()
BOOL	IsGroup ()
BOOL	IsLocked ()
BOOL	IsEndHook ()
BOOL	IsHookBase ()
HSegmentCache *	GetSegmentCache ()
