HBasePatchUV Class Reference

a HBasePatchUV is a class which keeps the UV's for a HPatch or HPatch5 More...

#include <HDecal.h>

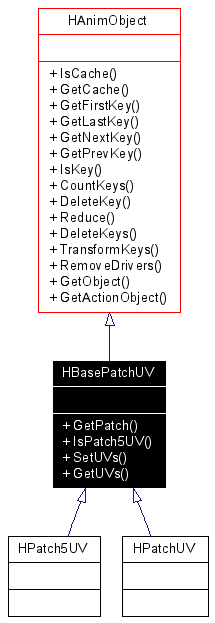

Inheritance diagram for HBasePatchUV:

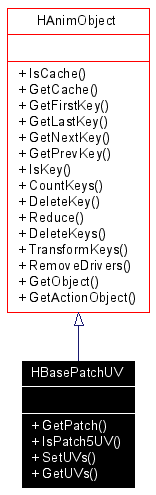

[legend]Collaboration diagram for HBasePatchUV:

[legend]List of all members.

Public Member Functions
HPatch *	GetPatch ()
BOOL	IsPatch5UV ()
void	SetUVs (Vector2 uvs[])
void	GetUVs (Vector2 uvs[])

---

Detailed Description

a HBasePatchUV is a class which keeps the UV's for a HPatch or HPatch5

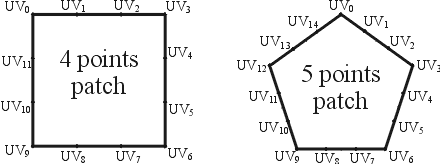

From the HBasePatchUV you can retrieve the HPatch class and the UV's for that patch. Now remember you are working with Patches not polygons so an HPatch has 12 UV's and an HPatch5 has 15 UV's as shown here.

UVs numbering

Definition at line 53 of file HDecal.h.

---

Member Function Documentation

HPatch * HBasePatchUV::GetPatch (   )

Returns the HPatch or HPatch5

void HBasePatchUV::GetUVs (  Vector2  uvs[]  )

BOOL HBasePatchUV::IsPatch5UV (   )

void HBasePatchUV::SetUVs (  Vector2  uvs[]  )

---

The documentation for this class was generated from the following files:

• C:/Program Files/Hash Inc/AM120SDK/Include/SDK/HDecal.h
• C:/Dox/SDK/Comments/Decals.dox

---
