ColorVectorAlpha Class Reference

#include <ColorVec.h>

Collaboration diagram for ColorVectorAlpha:

[legend]List of all members.

Public Member Functions
	ColorVectorAlpha (void)
	ColorVectorAlpha (float red, float green, float blue, float alpha)
	ColorVectorAlpha (float scalar)
	ColorVectorAlpha (COLORREF c)
	ColorVectorAlpha (const ColorVectorAlpha &other)
	ColorVectorAlpha (const HalfColorBufAlpha &other)
	ColorVectorAlpha (const ColorBuf &other)
ColorVectorAlpha &	operator= (const ColorVectorAlpha &other)
ColorVectorAlpha &	operator+= (const ColorVectorAlpha &other)
ColorVectorAlpha &	operator-= (const ColorVectorAlpha &other)
ColorVectorAlpha &	operator *= (const ColorVectorAlpha &other)
ColorVectorAlpha &	operator *= (float scale)
ColorVectorAlpha &	operator/= (const ColorVectorAlpha &other)
ColorVectorAlpha &	operator/= (float scale)
ColorVector	Color () const
float	Red () const
float	Green () const
float	Blue () const
float	Alpha () const
void	SetRed (float red)
void	SetGreen (float green)
void	SetBlue (float blue)
void	SetAlpha (float alpha)
void	Set (float red, float green, float blue, float alpha)
void	Set (float init)
int	operator== (const ColorVectorAlpha &a) const
int	operator!= (const ColorVectorAlpha &a) const
ColorVectorAlpha	operator+ (const ColorVectorAlpha &a) const
ColorVectorAlpha	operator- (const ColorVectorAlpha &a) const
ColorVectorAlpha	operator * (const ColorVectorAlpha &a) const
ColorVectorAlpha	operator * (float s) const
ColorVectorAlpha	operator/ (float s) const
ColorVectorAlpha	operator/ (const ColorVectorAlpha &a) const
float	operator[] (int i) const
Public Attributes
ColorVector	m_color
float	m_alpha
Friends
ColorVectorAlpha	operator * (const float s, const ColorVectorAlpha &a)

---

Detailed Description

Definition at line 93 of file ColorVec.h.

---

Constructor & Destructor Documentation

ColorVectorAlpha::ColorVectorAlpha (  void   )  [inline]

Definition at line 99 of file ColorVec.h.

ColorVectorAlpha::ColorVectorAlpha (  float  red, float  green, float  blue, float  alpha )  [inline]

Definition at line 100 of file ColorVec.h.

ColorVectorAlpha::ColorVectorAlpha (  float  scalar  )  [inline]

Definition at line 101 of file ColorVec.h.

ColorVectorAlpha::ColorVectorAlpha (  COLORREF  c  )  [inline]

Definition at line 102 of file ColorVec.h.

ColorVectorAlpha::ColorVectorAlpha (  const ColorVectorAlpha &  other  )  [inline]

Definition at line 103 of file ColorVec.h.

ColorVectorAlpha::ColorVectorAlpha (  const HalfColorBufAlpha &  other  )  [inline]

Definition at line 28 of file ColorVec.inl. References HalfColorBufAlpha::Alpha(), and m_alpha. Here is the call graph for this function:

ColorVectorAlpha::ColorVectorAlpha (  const ColorBuf &  other  )  [inline]

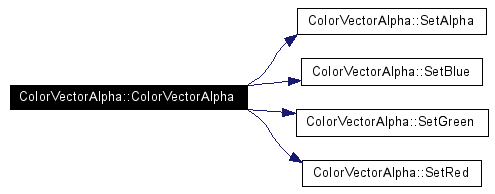

Definition at line 34 of file ColorVec.inl. References MAXCOLOR, SetAlpha(), SetBlue(), SetGreen(), SetRed(), and ColorBuf::values. Here is the call graph for this function:

---

Member Function Documentation

float ColorVectorAlpha::Alpha (   )  const [inline]

Definition at line 120 of file ColorVec.h. Referenced by operator=(), and operator==().

float ColorVectorAlpha::Blue (   )  const [inline]

Definition at line 119 of file ColorVec.h.

ColorVector ColorVectorAlpha::Color (   )  const [inline]

Definition at line 116 of file ColorVec.h. Referenced by operator *=(), operator+=(), operator-=(), operator/=(), operator=(), and operator==().

float ColorVectorAlpha::Green (   )  const [inline]

Definition at line 118 of file ColorVec.h.

ColorVectorAlpha ColorVectorAlpha::operator * (  float  s  )  const [inline]

Definition at line 135 of file ColorVec.h.

ColorVectorAlpha ColorVectorAlpha::operator * (  const ColorVectorAlpha &  a  )  const [inline]

Definition at line 134 of file ColorVec.h.

ColorVectorAlpha& ColorVectorAlpha::operator *= (  float  scale  )  [inline]

Definition at line 112 of file ColorVec.h.

ColorVectorAlpha& ColorVectorAlpha::operator *= (  const ColorVectorAlpha &  other  )  [inline]

Definition at line 111 of file ColorVec.h. References Color(), and m_alpha. Here is the call graph for this function:

int ColorVectorAlpha::operator!= (  const ColorVectorAlpha &  a  )  const [inline]

Definition at line 130 of file ColorVec.h.

ColorVectorAlpha ColorVectorAlpha::operator+ (  const ColorVectorAlpha &  a  )  const [inline]

Definition at line 132 of file ColorVec.h.

ColorVectorAlpha& ColorVectorAlpha::operator+= (  const ColorVectorAlpha &  other  )  [inline]

Definition at line 109 of file ColorVec.h. References Color(), and m_alpha. Here is the call graph for this function:

ColorVectorAlpha ColorVectorAlpha::operator- (  const ColorVectorAlpha &  a  )  const [inline]

Definition at line 133 of file ColorVec.h.

ColorVectorAlpha& ColorVectorAlpha::operator-= (  const ColorVectorAlpha &  other  )  [inline]

Definition at line 110 of file ColorVec.h. References Color(), and m_alpha. Here is the call graph for this function:

ColorVectorAlpha ColorVectorAlpha::operator/ (  const ColorVectorAlpha &  a  )  const [inline]

Definition at line 137 of file ColorVec.h.

ColorVectorAlpha ColorVectorAlpha::operator/ (  float  s  )  const [inline]

Definition at line 136 of file ColorVec.h.

ColorVectorAlpha& ColorVectorAlpha::operator/= (  float  scale  )  [inline]

Definition at line 114 of file ColorVec.h.

ColorVectorAlpha& ColorVectorAlpha::operator/= (  const ColorVectorAlpha &  other  )  [inline]

Definition at line 113 of file ColorVec.h. References Color(), and m_alpha. Here is the call graph for this function:

ColorVectorAlpha& ColorVectorAlpha::operator= (  const ColorVectorAlpha &  other  )  [inline]

Definition at line 107 of file ColorVec.h. References Alpha(), and Color(). Here is the call graph for this function:

int ColorVectorAlpha::operator== (  const ColorVectorAlpha &  a  )  const [inline]

Definition at line 129 of file ColorVec.h. References Alpha(), and Color(). Here is the call graph for this function:

float ColorVectorAlpha::operator[] (  int  i  )  const [inline]

Definition at line 138 of file ColorVec.h.

float ColorVectorAlpha::Red (   )  const [inline]

Definition at line 117 of file ColorVec.h.

void ColorVectorAlpha::Set (  float  init  )  [inline]

Definition at line 127 of file ColorVec.h.

void ColorVectorAlpha::Set (  float  red, float  green, float  blue, float  alpha )  [inline]

Definition at line 126 of file ColorVec.h.

void ColorVectorAlpha::SetAlpha (  float  alpha  )  [inline]

Definition at line 124 of file ColorVec.h. Referenced by ColorVectorAlpha().

void ColorVectorAlpha::SetBlue (  float  blue  )  [inline]

Definition at line 123 of file ColorVec.h. Referenced by ColorVectorAlpha().

void ColorVectorAlpha::SetGreen (  float  green  )  [inline]

Definition at line 122 of file ColorVec.h. Referenced by ColorVectorAlpha().

void ColorVectorAlpha::SetRed (  float  red  )  [inline]

Definition at line 121 of file ColorVec.h. Referenced by ColorVectorAlpha().

---

Friends And Related Function Documentation

ColorVectorAlpha operator * (  const float  s, const ColorVectorAlpha &  a )  [friend]

Definition at line 140 of file ColorVec.h.

---

Member Data Documentation

float ColorVectorAlpha::m_alpha

Definition at line 97 of file ColorVec.h. Referenced by ColorVectorAlpha(), operator *=(), operator+=(), operator-=(), and operator/=().

ColorVector ColorVectorAlpha::m_color

Definition at line 96 of file ColorVec.h.

---

The documentation for this class was generated from the following files:

• C:/Program Files/Hash Inc/AM120SDK/Include/ColorVec.h
• C:/Program Files/Hash Inc/AM120SDK/Include/ColorVec.inl

---
